Setting renderer.sortingLayerID via code

Discussion in 'Scripting' started by renman3000, Dec 20, 2019.

  1. renman3000

    renman3000

    Joined:
    Nov 7, 2011
    Posts:
    6,697
    Hi there,
    I want to set the sortingLayerID of an objects renderer, via renderer.sortingLayerID = some_int; My understanding on how to get the int, is to use int layer = LayerMask.NameToLayer("nameOfLayerIWant");

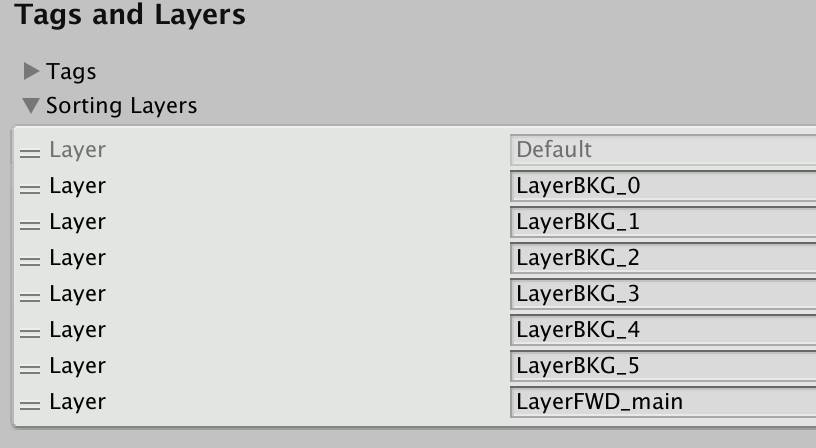

    My issue is that I am getting a return value of layer = -1. This despite having this particular layer, set in the ProjectSettings, see pics.

    Any thoughts?
    Thanks
    https://i.postimg.cc/GhQw16h4/2-C3-C2486-A197-4577-A611-7-EA2-AF155-C5-D.jpg
    https://i.postimg.cc/g229c4nN/5-BAD739-F-29-D4-4040-AFDA-9-EBE81-B69-A15.jpg

  2. Kurt-Dekker

    Kurt-Dekker

    Joined:
    Mar 16, 2013
    Posts:
    38,520
    Close! So close... LayerMask is for the 32 bitfield layers that Unity uses for lights, cameras, visibility.

    I'm pretty sure what you want is this:

    https://docs.unity3d.com/ScriptReference/SortingLayer.html

    Unity has Layers, Tags, and SortingLayers... it's super easy to get them crossed up, speaking from my own mixups.
