OnCollisionEnter - Destroy object, Simple question

Discussion in 'Scripting' started by UpcomingChris, Jun 3, 2014.

  1. UpcomingChris

    UpcomingChris

    Joined:
    Feb 11, 2011
    Posts:
    201
    This is a simple question, and I've taken a long break from Unity, and I've forgotten alot!, Basically, There's 4 keys around the level, One of which is the "CorrectKey" which you will need to obtain to open a door and progress to the next level, Now. I'm trying to make is so when you walk into the key, It will delete it, and then set a boolean variable to True saying you have a key, The only issue I'm having is i can't seem to get Unity to recognise when I Collide with the key, I don't know if i'm not using the correct colliders or something, But here's a few screenshots.

    Player properties: http://i.gyazo.com/e7bbf7bb25032e04b316de10ca212899.png

    Key Properties: http://i.gyazo.com/9105113e028d874c3aa066ce7416857a.png

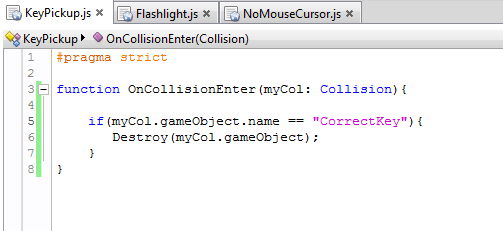

    Script (Attached to player): http://i.gyazo.com/1ffe9dbca4e2badb9d0df495c339c52f.png


    Any help is appreciated

  2. rcober

    rcober

    Joined:
    Jan 26, 2013
    Posts:
    52
    There are 2 methods related to doing this
    OnTriggerEnter http://docs.unity3d.com/ScriptReference/Collider.OnTriggerEnter.html
    OnColliderEnter http://docs.unity3d.com/ScriptReference/Collider.OnCollisionEnter.html

    The issues to getting this working surround whether each entity is a trigger and/or has a rigidbody.
    For collisions, one of the entities must be have rigidbody or is a Trigger.

    For your case, you could check the isTrigger on the key, and handle in OnTriggerEnter.

    The bottom of this page has a useful table:
    http://docs.unity3d.com/430/Documentation/Components/class-CapsuleCollider.html

    For some reason, the new docs got rid of the table.

    In addition, don't forget to check the layers each entity is on - this is controlled by setting the collision matrix.
    (In your case, looks like both are in the Default layer)
    http://docs.unity3d.com/Manual/LayerBasedCollision.html

    UpcomingChris likes this.
  3. UpcomingChris

    UpcomingChris

    Joined:
    Feb 11, 2011
    Posts:
    201
    Thanks alot!, Set the key as a trigger and used OnTriggerEnter instead, And it works, Appreciate the help!
