Need help adding alpha input to this shader

So I've been using a BumpSpecProbed shader I found to add normals to my lightprobe-using objects and make them look like they actually belong in the scene, but now i'm in a pinch since I need some gratings to have see-through holes - what would I add so I can use an input to add a tiling alpha map?
Here's the shader code so you don't need to download it yourself: http://pastebin.com/YUkjw8ZU

side note: I'm getting warnings about this shader not being a surface shader or something, so I was thinking, hasn't someone come up with a better way to display normals on a light probed object since 2012? I haven't researched extensively but either this is a fundamental problem or I'm missing something



You can just post the shader code between code tags on the forum. So, here is the mentioned shader:

Code (csharp):

1.
2. // Upgrade NOTE: replaced 'PositionFog()' with multiply of UNITY_MATRIX_MVP by position
3. // Upgrade NOTE: replaced 'V2F_POS_FOG' with 'float4 pos : SV_POSITION'
4.
5. Shader "Transparent/Bumped Trans Gloss" {
6. Properties {
7.    _Color ("Main Color", Color) = (1,1,1,1)
8.    _SpecColor ("Specular Color", Color) = (0.5, 0.5, 0.5, 0)
9.    _Shininess ("Shininess", Range (0.01, 1)) = 0.078125
10.    _MainTex ("Base (RGB) Trans (A)", 2D) = "white" {}
11.    _BumpMap ("Bumpmap", 2D) = "bump" {}
12.    _GlossMap ("Glossmap (A)", 2D) = "black" {}
13. }
14.
15. Category {
16.    Tags {Queue=Transparent}
17.    Alphatest Greater 0
18.    Fog { Color [_AddFog] }
19.    ZWrite Off
20.    ColorMask RGB
21.
22.    // ------------------------------------------------------------------
23.    // ARB fragment program
24.
25.    #warning Upgrade NOTE: SubShader commented out; uses Unity 2.x per-pixel lighting. You should rewrite shader into a Surface Shader.
26. SubShader {
27.      UsePass "Transparent/Specular/BASE"
28.
29.      // Pixel lights
30.      Pass {
31.        Blend SrcAlpha One
32.        Name "PPL"
33.        Tags { "LightMode" = "Pixel" }
34. CGPROGRAM
35. // Upgrade NOTE: excluded shader from DX11 and Xbox360; has structs without semantics (struct v2f members uvK,uv2,viewDirT,lightDirT)
36. #pragma exclude_renderers d3d11 xbox360
37. #pragma vertex vert
38. #pragma fragment frag
39. #pragma multi_compile_builtin_noshadows
40. #pragma fragmentoption ARB_fog_exp2
41. #pragma fragmentoption ARB_precision_hint_fastest
42.
43. #include "UnityCG.cginc"
44. #include "AutoLight.cginc"
45.
46. struct v2f {
47.    float4 pos : SV_POSITION;
48.    LIGHTING_COORDS
49.    float3   uvK; // xy = UV, z = specular K
50.    float2   uv2;
51.    float3   viewDirT;
52.    float3   lightDirT;
53. };
54.
55. uniform float4 _MainTex_ST, _BumpMap_ST;
56. uniform float _Shininess;
57.
58.
59. v2f vert (appdata_tan v)
60. {
61.    v2f o;
62.    o.pos = mul (UNITY_MATRIX_MVP, v.vertex);
63.    o.uvK.xy = TRANSFORM_TEX(v.texcoord,_MainTex);
64.    o.uvK.z = _Shininess * 128;
65.    o.uv2 = TRANSFORM_TEX(v.texcoord,_BumpMap);
66.
67.    TANGENT_SPACE_ROTATION;
68.    o.lightDirT = mul( rotation, ObjSpaceLightDir( v.vertex ) );
69.    o.viewDirT = mul( rotation, ObjSpaceViewDir( v.vertex ) );
70.
71.    TRANSFER_VERTEX_TO_FRAGMENT(o);
72.    return o;
73. }
74.
75. uniform sampler2D _GlossMap;
76. uniform sampler2D _BumpMap;
77. uniform sampler2D _MainTex;
78. uniform float4 _Color;
79.
80. float4 frag (v2f i) : COLOR
81. {
82.    float4 texcol = tex2D( _MainTex, i.uvK.xy );
83.
84.    // get normal from the normal map
85.    float3 normal = tex2D(_BumpMap, i.uv2).xyz * 2 - 1;
86.
87.    float gloss = tex2D(_GlossMap, i.uv2).xyz;
88.
89.    half4 c;
90.    c.a = texcol.a * _Color.a;
91.
92.    texcol.a = gloss;
93.    c.rgb = SpecularLight( i.lightDirT, i.viewDirT, normal, texcol, i.uvK.z, LIGHT_ATTENUATION(i) ).rgb;
94.
95.    return c;
96. }
97. ENDCG
98.      }
99.    }
100. }
101.
102. FallBack "Transparent/Bumped Specular"
103.
104. }
105.

I'm not sure what you are trying to achieve here, but this shader seems to be very old. It would be best to select one of the standard shaders in the current Unity as a base and then work from that. So, which shader is the starting point and what do you want to add?



The closest shader is probably the Transparent bumped specular shader

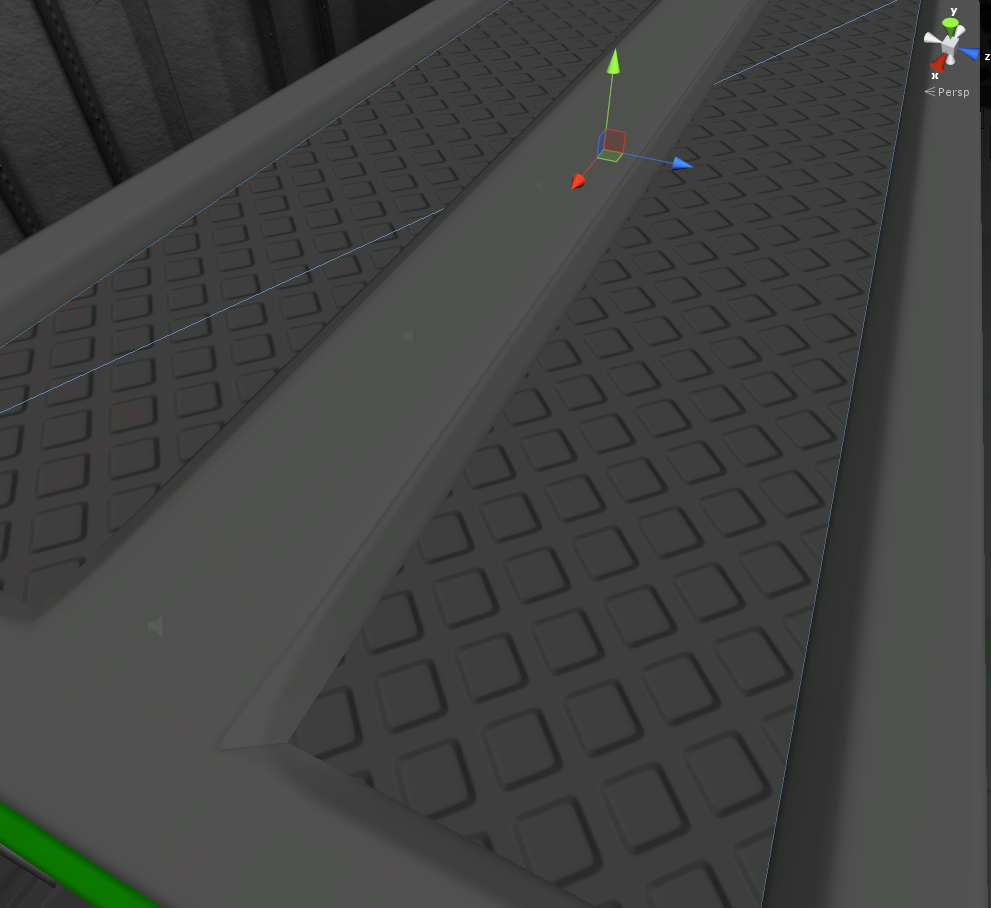

Using that, I get this;
http://i.imgur.com/uGtbpZ0.png (unlit)
http://imgur.com/Xyx6B6k,uGtbpZ0#0 (lit)
The problem is in the lit mode, the normals don't display, which is usual lightprobed object behaviour apparently
The BumpSpecProbed shader I linked above solves this and is able to show normals on non-static objects that use lightprobes, however it doesn't support alphas, which I need for this grating texture

Also I'm using directional lightmaps mode
